Motor torque auto-test system

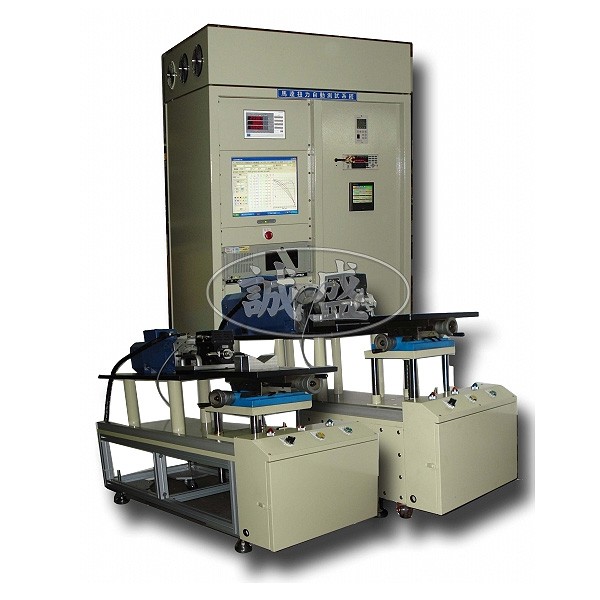

motor torque auto-test system
motor torque auto-test system
- 符合UL高效率測試方法測試
- 全鋁合金連軸器,減低慣性所造成誤差
- 模擬負載使用感應伺服馬達,減少慣量損失
- 不用進行動力計修正測試,可縮短測試時間約3~4 小時
- 自動化測試軟體,節省測試時間,可大大減低測試人員誤操作
- 測試數據資料完全顯示可供計算、驗證
- 提供4 種版本測試報告
- CNS14400※IEC60034-2-1※IEC60034-2-1-2※IEEE-112-B
Traditional test system
No.:CH-NMS10G
- Insulation test DC500V/0-500MΩ
- Insulation resistance test 0-3000V
- Auto / Manual test
- Leakage current test 0,5,1.0,2.0,3.0,5.0,10mA
- Ground current test
- Output Power 0-260W
- Customized products
motor torque auto-test system

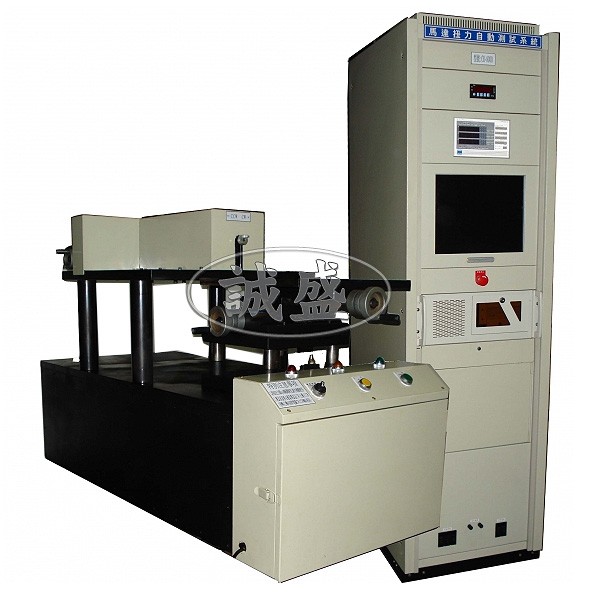

Vortex-type motor torque test bench
- Single / three phase characteristics automatic measurement
- Torque meter switchable, measurement range flexable
- Base axisx、y、zadjustable
- Aluminum alloy coupling
- Advantech Industrial Computer
- Advantech Industrial interface
- UPS system
- Computer auto-measurement and record T-N curve
- Resistance meter (Option)
- Temperature recorder (Option)
- Customized product

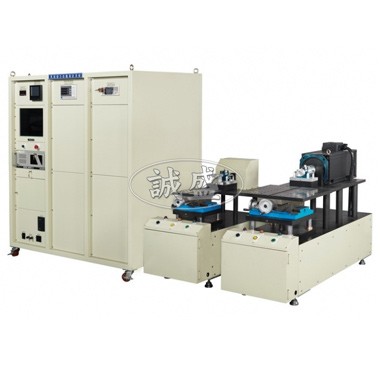

Synchronous motor torque auto-test system
- Synchronous no-load test data and a slightloss data.
- Single / three phase characteristics automatic measurement
- Torque meter switchable, measurement range flexable
- Base axisx、y、zadjustable
- Aluminum alloy coupling
- Advantech Industrial Computer
- Advantech Industrial interface。
- UPS system。
- Computer auto-measurement and record T-N curve
- Resistance meter (Option)
- Temperature recorder (Option)
- Customized product
